TMPA610/TMFA610TD Portable Phased Array Ultrasonic Flaw Detector
Introduction
TMPA610 series is a portable 64-CH phased array ultrasonic flaw detector originally developed by TMTECK. It’s water&oil -proof , fan-free and with touch screen. Whole-process data logging, innovative phased array probes and inspection methods being the advantages, this model guarantees superior performance and support, which makes it among the best of its kind for high C/P ratio,with UT ,PA&TOFD functions all in.
- File & Entry Management System for Flexible Bridging between Setting(Focal Law & Model), Calibration and Inspection
- Modular Configuration : L-Scan, S-Scan, L-C-Scan, S-C-Scan, Butt-Weld, CrankShaft , Pipeline, TOFD, UT(Conventional),
- 3D Simulation Model
- Image analysis
- Natural Structure of Heat Dissipation
- Dynamic Depth Focusing(DDF)
- Smooth Filtering
- Touch Screen
- ACG Calibration
- TCG Calibration
Feature
I Dynamic Focusing
Dynamic Focusing off
Dynamic Focusing On
II 3D Simulation Model
The 3D simulation scheme can be customized to offer one-for-all solutions.
III APP Menu
Menu of the software is shown in the manner of APP.
It can be cut down or enlarged accordingly if asked by the users.
V Projected Capacitive Touch Screen
Projected Capacitive Screen, water&oil -proof, impervious to
touching

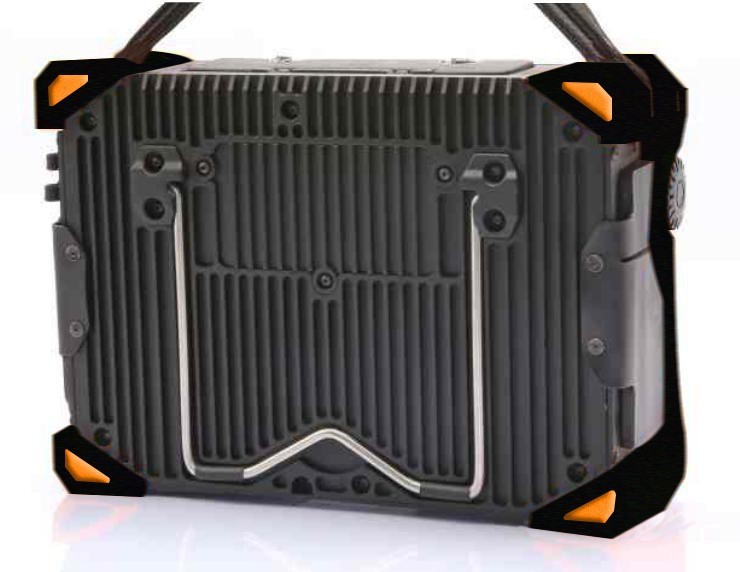

IV Metallic Housing
To strengthen the instrument, both shielding and heat-dissipating
V Protective Pedestal
To prevent any damage to either the instrument or the object
Specification
Channel Configuration
| Mode | PA | UT | TOFD(TMPA610TD) |
| Channel | 16:64 | 2 | 2 |
Physical
Specification
| Display | 11-inch 800X600 TFT color display | |
| Transducer | I-PEX 160-pin PA transducer port; Lemo-00 conventional | |
| Ports | transducer Port, for either T-R or T&R | |
| | USB2.0 Port: 2(qty) | |
| | HDMI; encoder | |
| I/O Ports | LAN(Gigabit-NIC); | |
| WIFI | |
| | |
| | I/O (commissioning) | |
| | 2D Encoder | |
| Memory | In-Built: 16G RAM+4GB FLASH ;SD card (max to 32G); | |
| External: USB drive | |
| | |
| Weight | 3.5Kg (with 1 battery) | |
| | | |
| Dimension | 284mm×202mm×95mm | |
| | | |
| Power | AC:100～240V,50～60Hz；DC:12V | |
| Supply | |
| | |
| Charging | (battery) within or individually | |
| | | |
| Battery Life | 6 Hours | |
| | | |
| Working | 24W | |
| Power | |
| | |
| Language | English | |
| | | |
| Temperature | Ambiance:-20℃～50℃ | |
| Conditions | Storage:-20℃～60℃ | |
| | | |
| IP | 54 | |
| | | |
PerformanceSpecification
| Tode | PA | UT | TOFD(TMPA600TD) | |
| | | | | |
| PRF | 50Hz～10kHz | 50Hz～5kHz | 50Hz～5kHz | |
| | | | | |
| | Bipolar, | Negative Square | Negative Square | |
| Voltage | ±45～±100V, | Wave, -75V～-250V, | Wave, -75V～-250V, | |
| | with 5V per step | with 25V per step | with 25V per step | |
| Pulse Width | 20ns～800ns, | 20～800ns, with 5ns | 20～800ns, with 5ns | |
| with 5ns per step | per step | per step | |
| | |
| Damping | 50Ω | 80Ω / 400Ω | 80Ω / 400Ω | |
| Sampling | 125MHz | 200MHz | 200MHz | |
| Rate | |
| | | | |
| Delay | 2.5ns | N/A | N/A | |
| Precision | |
| | | | |
| Rx Delay | 0～40us | N/A | N/A | |
| | | | | |
| Bandwidth | 0.5MHz～19MHz | 0.5MHz～15MHz | 0.5MHz～15MHz | |
| | | | | |
| Gain | 0.0～80dB | 0.0～110.0dB | 0.0～110.0dB | |
| | | | | |
| | 0.5-9.6MHz,2.5- | | | |
| Filter | 12.9MHz, | broadband, | broadband, | |
| 3.8-19MHz | narrowband | narrowband | |
| | |
| | Optional | | | |
| Rectification | FW | FW | RF | |
| Reject | 0~80% | 0~80% | 0~80% | |
| Scan Mode | A/L/S/C | A | A/D | |
| Triggering | Encoder | N/A | Encoder | |
| Scan Line | Max 128 | N/A | N/A | |
| Skew | L-scan:-89°～+89° | N/A | N/A | |
| S-scan:-89°～+89° | |
| | | | |
| | | | | |
| Smart-Cal | Velocity/Delay/AC | DAC/DGS | Delay/X-Value/PCS/ | |
| G/TCG/Encoder | Wave/Encoder | |
| | | |
| Range | 0.0～1000mm, | 0.0～2000mm | 0.0～2000mm | |
| min 1mm | |
| | | | |
| Displaying | | | | |
| Delay | 1000mm | 2000mm | 2000mm | |
| (max) | | | | |
| Pulse Shift | N/A | 2000mm | 2000mm | |
| (max) | |
| | | | |
| Unit | mm | mm | mm | |
| Gate | A/B | A/B | A/B | |
| Gate Start | Available within the | Available within the | Available within the | |
| range | range | range | |
| | |
| Gate Width | Available within the | Available within the | Available within the | |
| range | range | range | |
| | |
| Gate | 0-100% | 5-95% | 0-100% | |
| Threshold | |
| | | | |
| Alarm | Buzzer / LED | Buzzer / LED | Buzzer / LED | |
| Signal | |
| | | | |
| Spotting | Crest / Flank | Crest / Flank | Crest / Flank | |
| Readout | Amp/Path/ | Amp/Path | Amp/Path | |
| Horizontal/Depth | /Horizontal/Depth | /Horizontal/Depth | |
| | |
| Resolution | 0.5mm | 0.1mm | 0.1mm | |
Application
- Common or special welded seam of steel structure, utility boiler, pressure vessel, pipeline, nuclear power infrastructures, watercraft, oil tank, ethylene tube, etc.
- Railway welded seams, locomotive wheel sets and axles.
- Aluminum alloy FSW butts and bondings of composites used in aerospace industry.
- Blades and bolts used in power industry.
- Cases when there’s not enough space for movement whilst inspection; Cases when conventional UT is preferred.
Packing Details
TMPA610 TMPA610TD
